Captures Temperature, Time, Vibration, and Heat Map in one device. Designed for precision, speed, and smart integration, this compact tool delivers unmatched control over your reflow oven process—boosting accuracy, consistency, and efficiency across the SMT line.
The iRaptor EYE is a revolutionary leap in SMT (Surface Mount Technology) process optimisation, introduced as the world’s first 4D profiler. Designed & developed by iRaptor Lda & India launch by Innotronics Technologies Pvt Ltd., the EYE brings together four critical profiling dimensions—Temperature, Time, Vibration, and Heat Map—into one powerful and compact device. Built to meet the demands of modern electronics manufacturing, the EYE offers unmatched control and visibility over reflow oven processes, enabling engineers to achieve greater accuracy, consistency, and productivity on the SMT line.
The key features include:
- Wide temperature range: 250°C to 1200°C
- High accuracy: ±0.5°C, resolution 0.1°C
- Adjustable sampling rate: 0.1 to 50 readings/sec
- Compact dimensions: 120 x 65.5 x 14.5 mm (profiler)
- Durable thermal shield with insulation for high-heat environments
- Built for demanding SMT production conditions
- Delivers industry-leading profiling performance

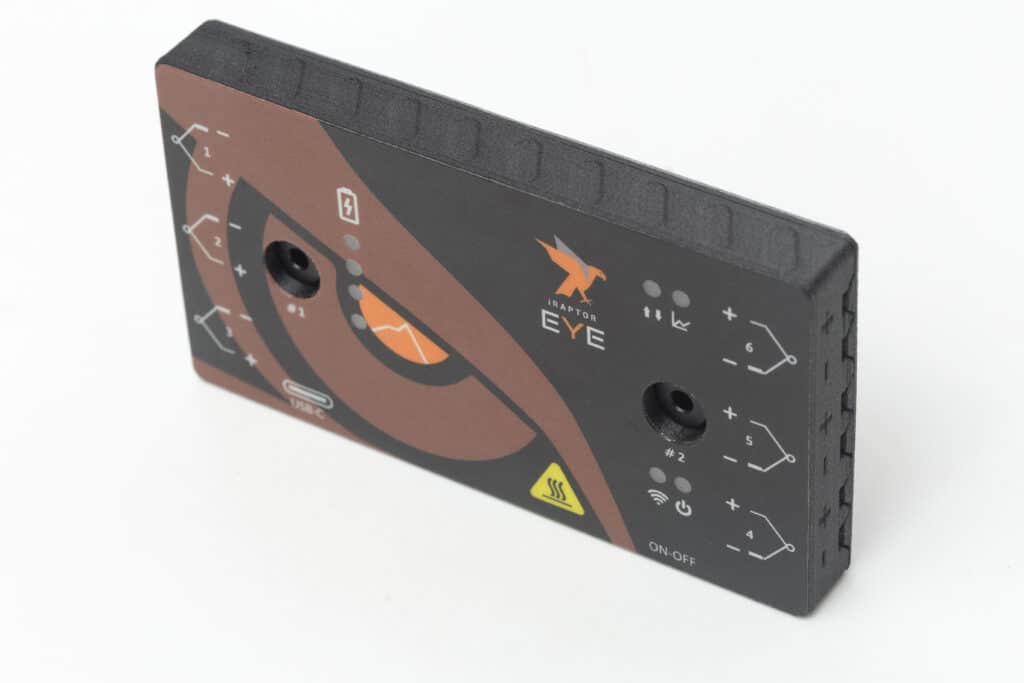

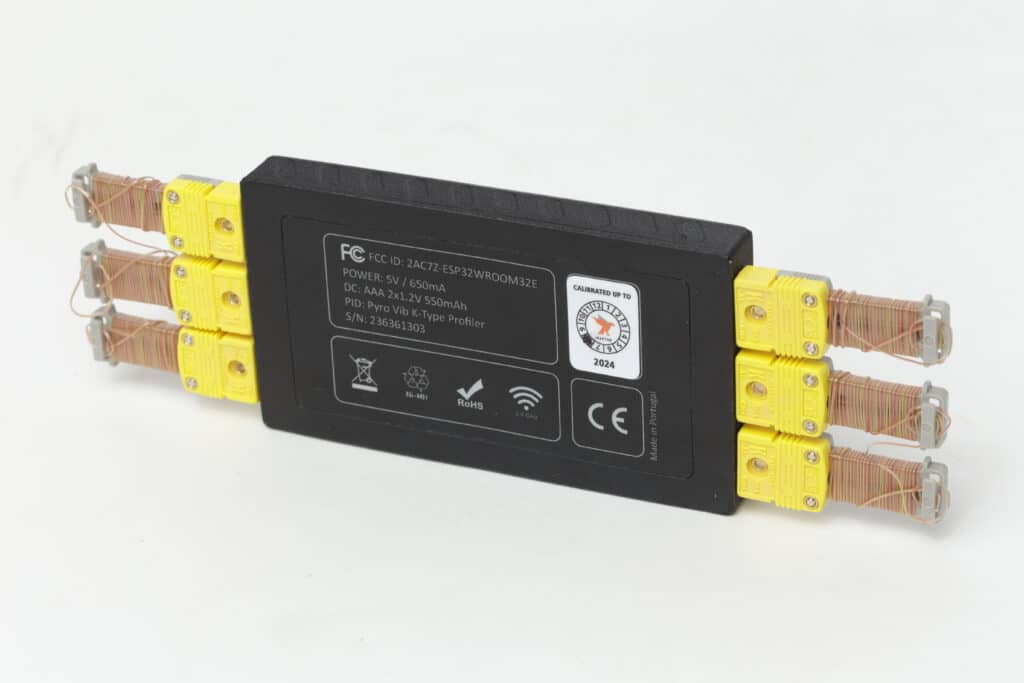

The EYE combines intelligent sensors, including integrated accelerometers, pyrometers, and high-precision thermocouples, to deliver real-time, multi-dimensional insights. Its lightweight design houses six functional TC channels and supports wireless data transfer via a 2.4GHz Wi-Fi connection. With USB-C rechargeable Ni-MH batteries, LED indicators for battery and unit status, and dual lasers for alignment, the EYE ensures both portability and ease of use. A user-friendly software interface and built-in SQL database allow seamless integration with MES systems, enabling data logging, visualization, and process traceability.
Engineered for advanced process control, the EYE offers heat map and vibration analysis for instant feedback, helping operators detect anomalies and make rapid adjustments. Its built-in reflow optimization tool recommends ideal oven recipes automatically, while CPI-based profile validation ensures compatibility with the defined process window. The inclusion of a solder paste and component specification library further streamlines setup by eliminating repetitive data entry.

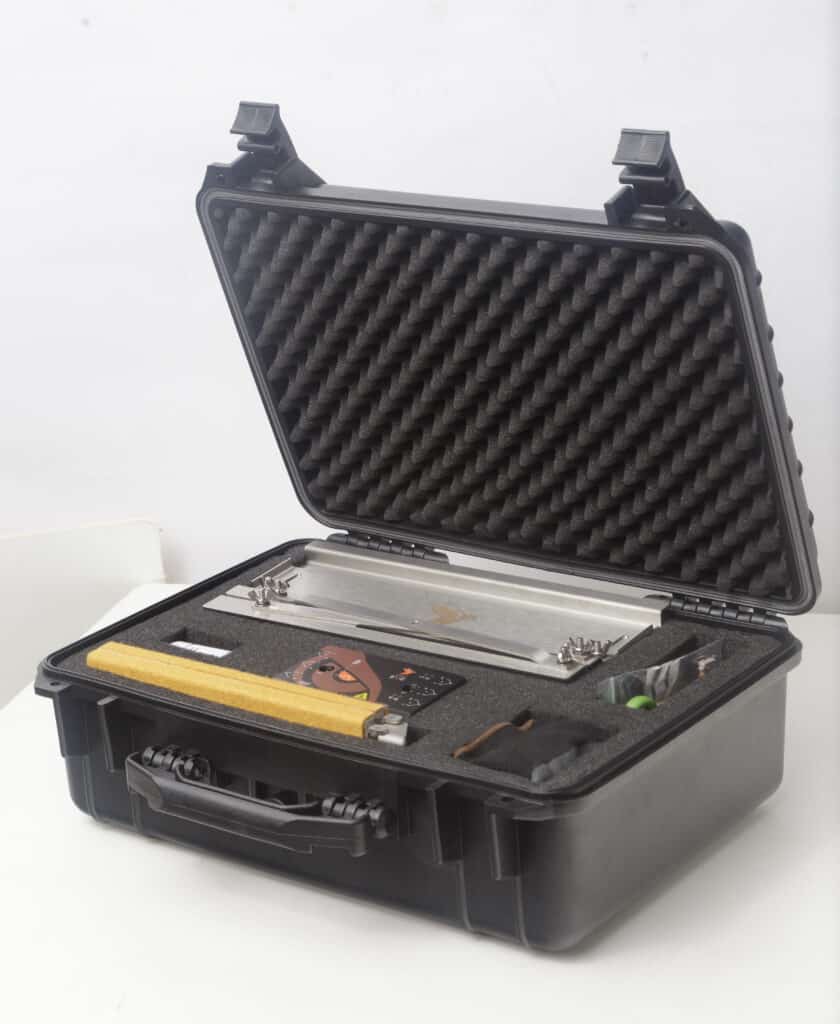

Each EYE Profiler Kit includes a 6-channel profiler, thermal shield, USB Wi-Fi dock, carrying case, USB-C cable, gloves, six K-type thermocouples, aluminum tape, scissors, a quick reference manual, and a 2-year warranty.
